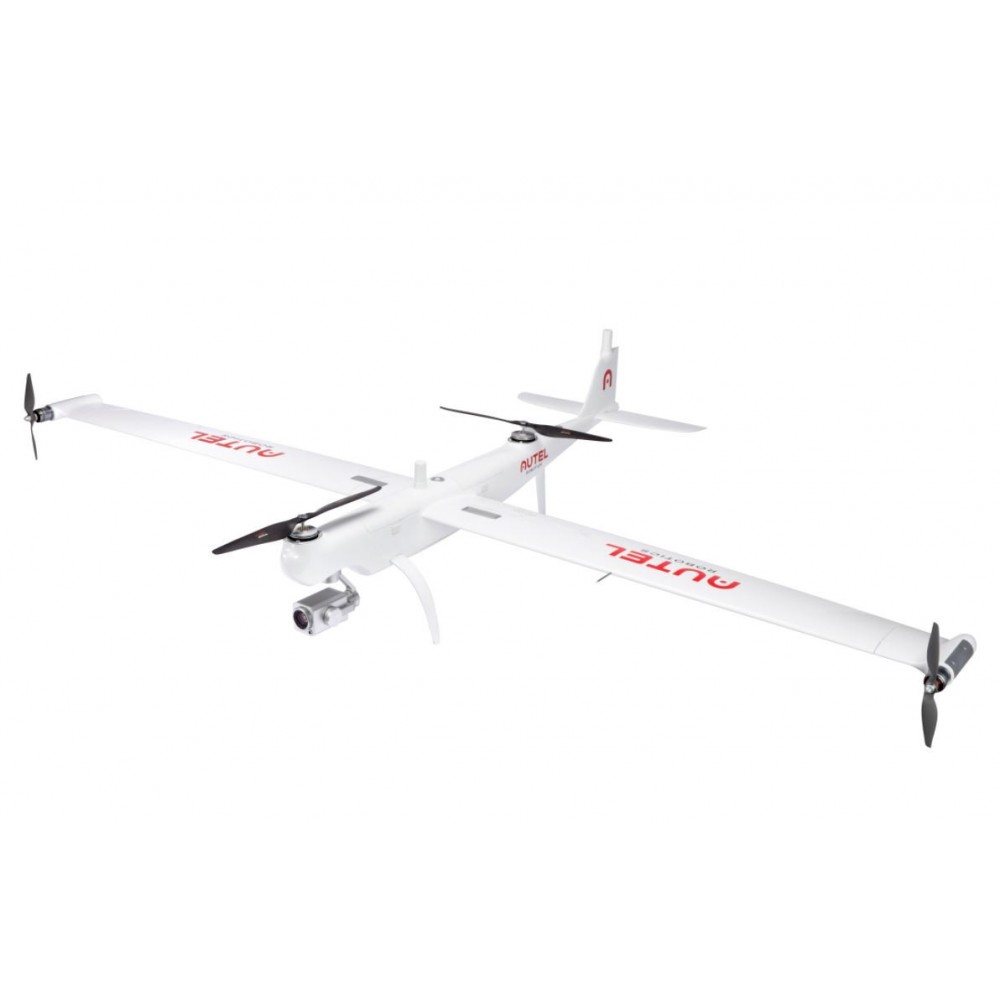

DragonFish pro with Dual sensor

DragonFish pro with Dual sensor

Product Code: DRAGON FISH
Availability: Available on Back Order
Viewed 311 times

Product Description

AIRCRAFT
Operating Frequency 902-928 MHz;
2.4000-2.4835 GHz;
5.725-5.755 GHz
EIRP (Equivalent radiated power) 900MHz
FCC:< 30>2.4 GHz
FCC:< 30>SRRC/CE/MIC:< 20>5.8 GHz
SRRC/FCC:< 22>CE: < 14>
Hovering Accuracy (P-mode with GPS) Vertical:
±0.1 m (Vision System enabled)
±0.5 m (GPS enabled)
±0.1 m (RTK enabled)
Horizontal:
±0.3 m (Vision System enabled)
±1.5 m (GPS enabled)
±0.1 m (RTK enabled)
RTK Positioning Accuracy When RTK enabled and fixed:
Multi-rotor:
1 cm+1 ppm(Horizontal)
1.5 cm + 1 ppm(Vertical)
Fixed Wing:
3 cm+1 ppm(Horizontal)
3 cm + 1 ppm(Vertical)
Max Angular Velocity Pitch:180°/s
Yaw:60°/s
Max Pitch Angle 20°
Max Roll Angle 35°
Max Ascent Speed Vertical Flight Mode:4 m/s
Fixed Wing Mode:5 m/s
Max Descent Speed (vertical) c:3 m/s
Fixed Wing Mode:5 m/s
Max Flight Speed 30 m/s
Max Flight Speed 0m/s~17m/s(Multi-rotor)
17m/s~30m/s(Fixed Wing)
Supported Gimbal Configurations Fast Disassembly
Ingress Protection Rating IP43
GNSS GPS+GLONASS+BeiDou+Galileo
Operating Temperature -20°C to 50°C
AIRCRAFT BATTERY
Single Battery Charging Time 120 min
Recommended Storage Temperature 22°C to 28°C
Charging Temperature Range 15℃ to 40℃
Operating Temperature -20℃ to 40℃
GROUND CONTROL STATION
Video Transmission Operating frequency:
902-928 MHz;
2.4-2.4835 GHz
Max Transmitting Distance (unobstructed, free of interference):
FCC:10 km
CE / MIC:5 km
SRRC:5 km
Data Transmission Operating frequency:
5.725 - 5.755 GHz
Wi-Fi Protocol:
Wi-Fi Direct;
Wireless;
Display;
802.11a/g/n/ac;
Wi-Fi with 2×2 MIMO
Operating frequency:
2.400 - 2.4835 GHz
5.150 - 5.250GHz
5.650 - 5.755GHz
5.725 - 5.850 GHz
Battery Type: Li-Po
Capacity: 8200 mAh
Voltage: 52.8 V
Energy: 93 Wh
Charging time: 120 min
Run Time 3 hrs (Max brightness)
4.5 hrs (Half brightness)
Storage Capacity ROM 16 GB + scalable (TF)
Video Output Port HDMI Port
Power Supply Current / Voltage (USB-A port) 5V / 500mA
Operating Temperature Range -20℃ to 40℃
Charging Temperature Range 0℃ to 45℃
Storage Temperature Range < 1>1-3 months: -4° to 113° F (-20° to 45° C)
3-12 months: -4° to 86° F (-20° to 30° C)
GNSS GPS+GLONASS+Galileo
Dimensions 319×233×74 mm(antennas folded)
319×398×74 mm(antennas unfolded)
Weight 1987g
BASE STATION
GNSS receiver Satellite receiving frequency(Simultaneously receive):
GPS: L1, L2, L5
BeiDou: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B
Positioning accuracy:
Single Point
Horizontal: 1.5 m (RMS)
Vertical: 3.0 m (RMS)
RTK
Horizontal: 1 cm+1 ppm (RMS)
Vertical: 1.5 cm+ 1 ppm (RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Positioning update rate:1Hz,2 Hz,5 Hz,10 Hz 和 20Hz
Cold start:< 40s>
Hot start:< 10s>
Recapture:< 1s>
Initialization reliability:> 99.9%
Differential data transmission format:RTCM 2.X/3.X
Communication Data link:Image transmission, Wi-Fi
Image transmission Operating frequency:2.4000-2.4835 GHz;902-928 MHz
EIRP (Equivalent radiated power):
902-928 MHz
FCC:< 30>2.400-2.4835 GHz
FCC:< 30>SRRC/CE/MIC:< 20>
Wi-Fi Operating frequency:
2.400-2.4835 GHz;
5.125-5.25GHz;
5.650-5.755GHz;
5.725-5.850GHz
EIRP (Equivalent radiated power)
2.400-2.4835 GHz
FCC:< 26>SRRC/CE/MIC:< 20>5.125-5.25GHz
FCC/SRRC:< 26dBm
5.650-5.755GHz
MIC:< 20>5.725-5.850GHz
SRRC/FCC:< 26>SRRC/CE/MIC:< 20>
Communication distance:
Mobile station and aircraft: 30 km (FCC)
Mobile station and remote control: 200 m (FCC)
(Unobstructed and free of interference, when the mobile station is used as a base station and the distance from the mobile station antenna to the bottom of the tripod is 2 m; and when the difference in height between the remote controller and mobile station is less than 10 m, and when the remote controller is 1.2 m from ground level)
Electrical characteristics Power consumption:7.5 W
Power supply:5 to 20V DC(supports USB PD charging protocol)
Battery:
Type: lithium ion polymer battery
Capacity: 4950 mAh
Energy: 57.1 WH
Run time:> 7.5 h
Physical properties Size(Base station body + extension rod):193 mm×177 mm×73 mm
Weight:1275g
Dustproof and waterproof:IP65
Operating temperature:-20℃至 50℃
