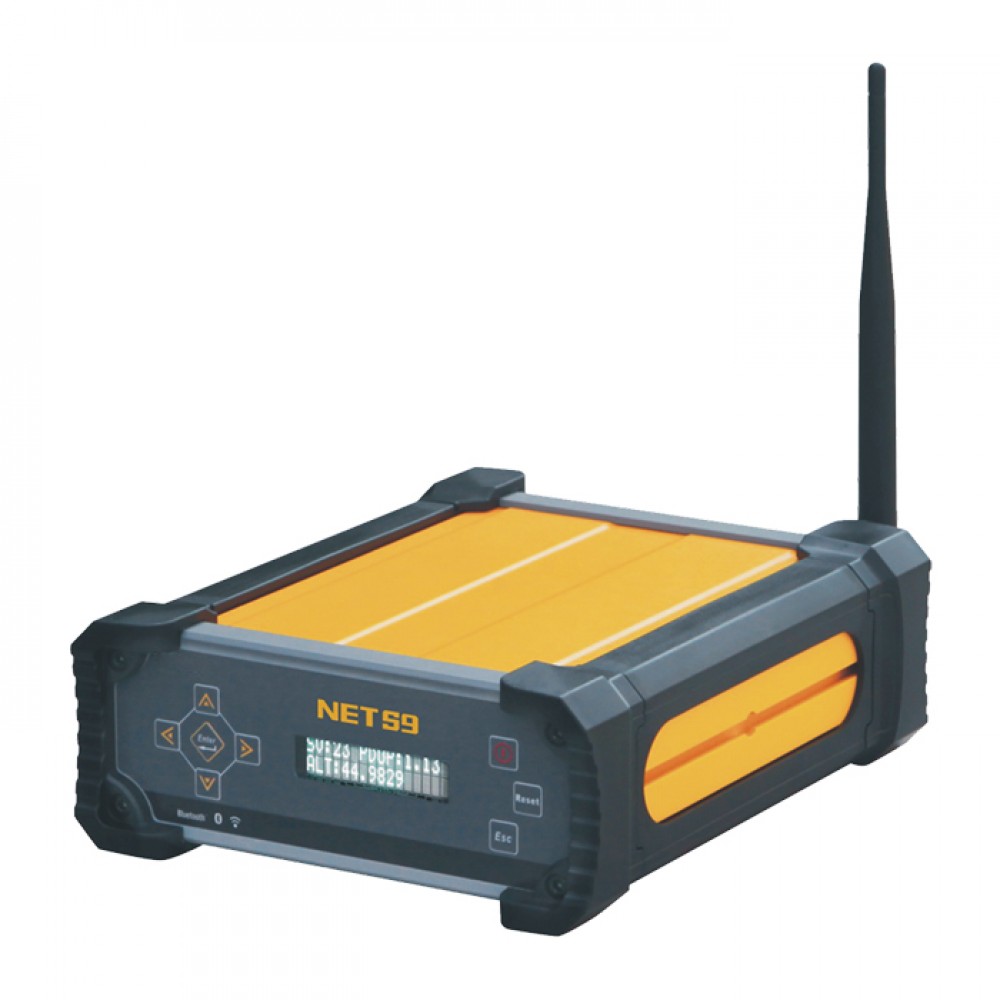

Cors S9 set
Product Description
| GNSS | ||
|
Channels 220 channels (336 Optional) |
GPSL1 C/A, L2E, L2C, L5 | GLONASS L1 C/A, L1P, L2 C/A(GLONASS M only), L2P |
|
BDSB1, B2, B3 |
GALILEOL1 BOC,E5A,E5B,E5AItBOC1 | SBASL1, L2C, L5 |
| InitializationTypically<10> | Initialization reliability>99.9% |
|
| Accuracy | ||
|
Accuracy Code differential GNSS positioning Horizontal: 25mm+1ppm RMS Vertical: 50mm+1ppm RMs |
SBAS positioning accuracy<5m> | Static GNSS surveying Baseline<30km>
Horizontal: 2.5mm+0.1ppm RMS Vertical: 3.5mm+0.4ppm RMS |
|
Static GNSS surveying Baseline>30km Horizontal: 4mm+0.5ppm RMS Vertical: 9mm+0.5ppm RMS |
Real-time Kinematic Baseline<30km>
Horizontal: 10mm+1ppm RMS Vertical: 20mm·+1ppm RMS |
Real-time Kinematic Network RTK
Horizontal: 8mm+0.5ppm RMS Vertical: 15mm+0.5ppm RMS |
| Data storage & output | ||
|
Data storage8G (extend to 32G) internal memory is capable of cycle-recording raw data, adopts eMMC technology, stable and reliable |
Positioning rate1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz(depend on setup option) | Reference output CMR, CMR+, RTCM2.1, RTCM2.2, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2, sCMRx, RTCA, NOVATELX |
|
Navigation output ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS and binary |
Data format Support STH, RINEX2.x, RINEX3.x raw data storage | Data retrievalDownload form HTTP, FTP Push and USB copy |
| Data communication | ||
|
Ethernet protocolSupport TCP/IP, HTTP and NTRIP protocol |
Serial port
Navigation data, static data and differential correction data transmission, PPS-UTC |
BluetoothBluetooth 2.1 (Class2)+EDR, 2.4GHz |
| WiFi
2.4GHz, IEEE 802.11 b/g/n, allows to access built-in web user interface with the mobile terminal via its WIFI hotspot |
|
|
| Electrical | ||
|
Power supply 9V～28V DC input, 3 separate interfaces for power supply with over-voltage protection |
Battery10000mAh high capacity of battery built-in | Battery lifeMore than 15 hours for continuous work in default configuration |
|
Consumption Low power consumption 3.8W |
||
| User interface | ||
|
Front panelFront panel display with buttons and LED screen |
Network interfaceTwo RJ45 network interface | RS-232 serialOne RS-232 serial port(9-pin), data transmission |
|
USBTwo USB port, USB host and USB device |
Power interfaceThree separate power interface | Multi-function interfaceOne port supports PPS output, Event marker input, serial port and power supply |
|
External frequency portOne external frequency scale port, supports high-precision atomic clock connection |
GPS Antenna interfaceChoke ring antenna connection | WIFI antenna interfaceAllows to connect a WIFI broadcast antenna |
| Physical | ||
|
Dimension(L×W×H)216mm×178mm×72mm |
Weight2.28kg | Shock and vibrationRugged aluminum alloy housing plus plastic ring seal, designed to survive a 2m drop onto concrete |
|
Waterproof/DustproofIP67 level standard, protect against for temporary immersion to a depth of 1m; Completely protect from dust |
||
| Environmental | ||
|
Storage temperature-40℃～+80℃ |
Working temperature -40℃～+75℃ | HumidityRelative humidity, 10%-100%condensing |
