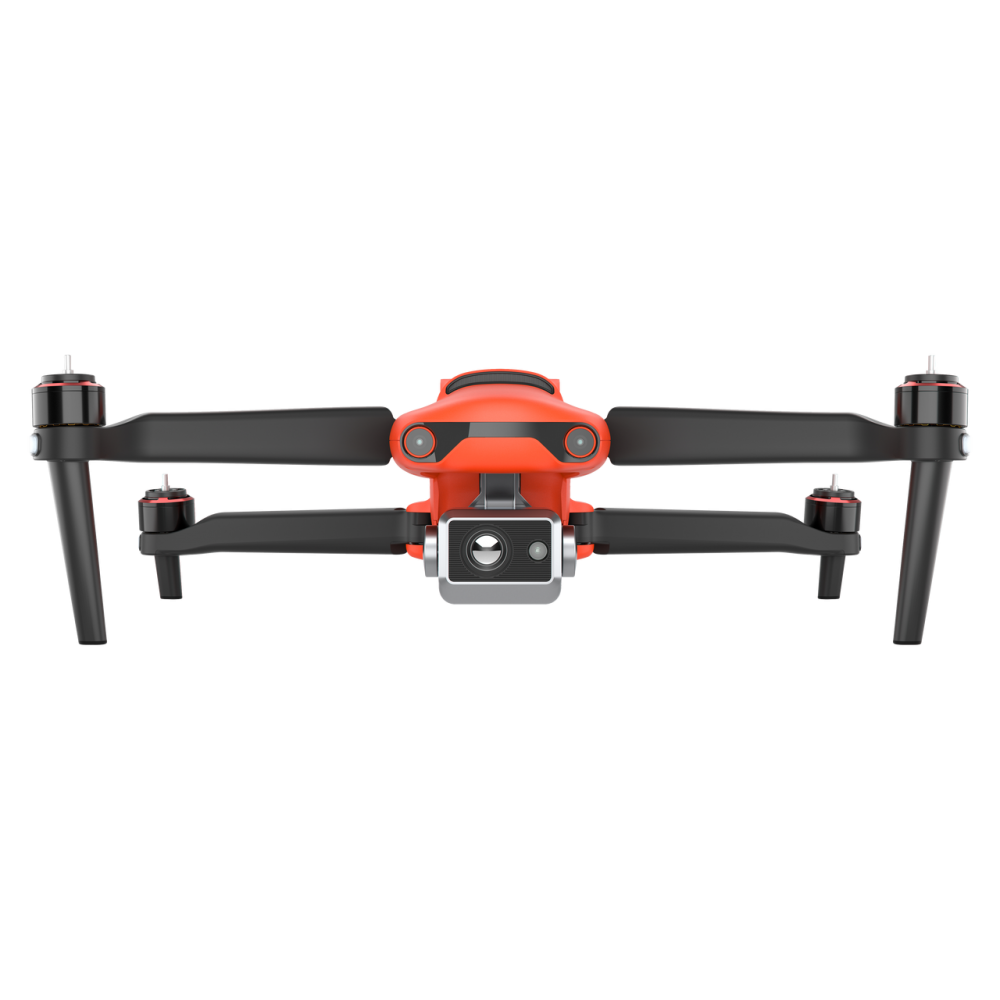

EVO II Dual RTK Rugged Bundle (640) T
Viewed 1478 times
Share This
Product Description
| AIRCRAFT | |
| Weight (with propeller and battery) | 1250g±0.5g（EVO II Dual 640T RTK） |
| Wheelbase | 397 mm |
| Maximum Service Ceiling Altitude | 3.7miles (6000 m) MSL |
| Max ascent speed | 5 m/s（automatic flight） 8 m/s（manual control） |
| Max descent speed | 4 m/s |
| Max horizontal flight speed | 72 km/h（positioning mode） |
| Max tilt angle | 33°（positioning mode） |
| Max angular velocity | 120°/s |
| Max flight time | 36 min |
| Operating temperature range | -10℃ to 40℃ |
| Maximum resistance to wind | Level 8 |
| Working Frequency | 2.4~2.4835GHz |
| Transmission Power | 2.4~2.4835GHz FCC/ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm |
| Hovering accuracy | When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS positioning works normally) |
| Image position compensation | The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. |
| CAMERA | |
| Gimbal | Three-axis stabilization |
| Mechanical range | Tilt: -135° to +45°; Heading: -100° to +100° |
| Controllable rotation range | Tilt: -120° to +30°; Heading: -90° to +90° |
| Maximum control speed (Tilt) | 300°/s |
| Angle jitter | ±0.005° |
| REMOTE CONTROLLER AND IMAGE TRANSMISSION | |
| Working Frequency | 2.4~2.4835GHz |
| Transmission Power | 2.4~2.4835GHz FCC/ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm |
| Maximum effective distance of signal | FCC：5.5 miles (9 km)（without interference or obstruction） CE：3.1 miles (5 km)（without interference or obstruction） |
| Real-time image transmission quality | 720p@30fps / 1080p@30fps |
| Maximum bit rate of real-time image transmission | 40Mbps |
| Display screen | 3.26” OLED 854（W） * 480（H）Pixel Directly preview the video without connecting a mobile phone |
| Remote controller battery | 5000mAh |
| Run time | 3 hours |
| Charging time | 2 hours fast charge |
| Working current/voltage | 1.7A@3.7V |
| SENSING SYSTEM | |
| Sensing system type | Omnidirectional sensing system |
| Forward | Accurate measurement range: 0.5-20 m Detection range: 0.5-40 m Effective sensing speed: < 15m>Viewing angle: Horizontal: 60°, Vertical: 80° |
| Backward | Accurate measuring range: 0.5-16 m Detection range: 0.5-32 m Effective sensing speed: < 12m>Viewing angle: Horizontal: 60°, Vertical: 80 |
| Upward | Accurate measurement range: 0.5-12 m Detection range: 0.5-24 m Effective sensing speed: < 6m>Viewing angle: horizontal: 65°, vertical: 50° |
| Downward | Accurate measurement range: 0.5-11 m Detection range: 0.5-22 m Effective sensing speed: < 6m>Viewing angle: horizontal: 100°, vertical: 80° |
| Left and right | Accurate measurement range: 0.5-12 m Detection range: 0.5-24 m Effective sensing speed: < 10m>Viewing angle: horizontal: 65°, vertical: 50° |
| Effective use environment | Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.) |
| Infrared camera specifications | |
| Image sensor | Vanadium oxide uncooled infrared focal plane detector |
| Lens | Viewing angle H33°V26° Focal length 13mm |
| Zoom | 1-8x |
| Sensor resolution | 640×512 |
| Pixel size | 12μm |
| Wavelength range | 8 – 14μm |
| Temperature range | High gain mode: -20° to +150° Low gain mode: 0° to +550° |
| Temperature measurement accuracy | ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃ |
| Video resolution | 640×512@30fps |
| Bit rate | 6Mbps |
| Video format | MOV / MP4 (Support H.264/H.265) |
| Camera resolution | Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720 |
| Photo mode | Single shot Continuous shooting: 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, the default is 5S. |
| Photo format | TIFF+JPG (with irg file) |
| Visible light camera specifications | |
| Image sensor | 1/2 inch CMOS; 48M effective pixels |
| Lens | FOV：79° 35 mm format equivalent focal length: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus) |
| Zoom | 1-8x (up to 4x lossless zoom) |
| ISO range | Video: 100-6400 Photos: 100-3200 |
| Maximum photo size | 8000×6000（4:3） 7680×4320（16:9） 4000*3000 (4:3) 3840*2160 (16:9) |
| Photo mode | Single shot; Continuous shooting (AEB/Burst): 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S; Pure night shot: support 4K Jpeg; HDR: Support 4K Jpeg; Long exposure: up to 8s; |
| Image Format | JPG (default); DNG |
| Video format | MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265) |
| Video resolution | 8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Maximum video bit rate | 120Mbps |
| Battery Charging Hub | |
| Voltage | 13.2 V |
| Charging temperature range | 5℃ to 45℃ |
| CHARGER | |
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
| Voltage | 13.2±0.1V |
| Rated power | 66W |
